Product Details
Place of Origin: China
Brand Name: TSL
Certification: ISO9001, SGS, FCC, ROSH
Model Number: TSL-B4
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1 Working Day
Payment Terms: T/T Bank Transfer, , PayPal
Supply Ability: 3000pcs per month
Jamming Range: |
5-25m Depending On The Environment Signal Strength |
Product Name: |
Vehicle Mounted Cell Phone Network Jammer |
Operating Humidity: |
5% - 95% |
Power Supply: |
Car Adapter |
Net Weight: |
1.5kg |
Jamming Direction: |
Omni-directional |
Gross Weight: |
2.5kg |
Working Time: |
24 Hours |
Operating Temp: |
-10 To 50℃ |
Size: |
26.5*11.5*5 CM |
Jamming Range: |
5-25m Depending On The Environment Signal Strength |
Product Name: |
Vehicle Mounted Cell Phone Network Jammer |
Operating Humidity: |
5% - 95% |
Power Supply: |
Car Adapter |
Net Weight: |
1.5kg |
Jamming Direction: |
Omni-directional |
Gross Weight: |
2.5kg |
Working Time: |
24 Hours |
Operating Temp: |
-10 To 50℃ |
Size: |
26.5*11.5*5 CM |
Desktop Smart Cell Phone Signal Jammer , Cellular Phone GPS WiFi Jammer
Introduction
1, It can provide 24/7/365 jamming even in a constant cooling system.
2, Output power adjustable design makes the jammer more user-friendly.
3, Each frequency channel can be controlled separately and simultaneously.
4, Totally with a 12Watt high output power makes a more efficient jamming.
5, Shielding range can be up to 30M.
6, Up to four frequency bands, including all the cellular phone bands, with GPS or Bluetooth optional.
We strongly recommend this military quality Jammer.It is easy to use, superior design.
This Cell Phone Signal Jammer is a sophisticated high power desktop cellular phone GPS WiFi jammer. It can be used for all the worldwide network frequency system. It is the best choice for meeting room and testing room applications.
Description

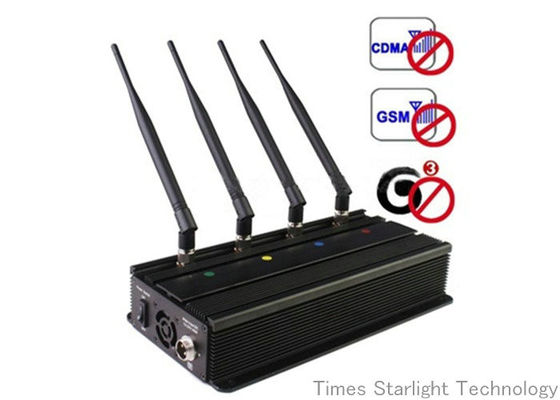

1. The TSL-B4 is a desktop jammer with 4 (max to 16) high-gain omni-directional antennas. It was designed to against all kinds of Remote telecomunication cheats on Examnations.
2. The target jamming signal includes but not limited to CDMA, GSM, 3G & 4G LTE, GPS, UHF, VHF, WiFi and Bluetooth. Any frequencies which can be used for cheating are available for jamming.
3. The black metal case provides an excellent heat-dissipation effect for the jammer.
4. Besides, the 2 little fans inside can also help to blow the heat away and insure the long & stable operation of 24*7. Just like all our jamming devices, TSL-B8 is rather easy to use.
5. All you need to do is to attach the plug and antennas, then press the switch.
6. The jammer will block all target signals around automatically and there is nothing else for you.
7. This model can reach 4 to 16 channels for option, interference of all mobile phone signal, WIFI 2.4G signal, Wireless Camera & GPS L2, VHF, UHF, etc. Within the effective range for up to 50meters, Practical for some locations of special purpose such as, hospitals, gas stations and so on.
8. Specially designed for easy and simple use, this device does not require complicated installation or any professional knowledge.
9. To block CDMA/GSM/DCS/3G.
10. With car charger, can be used in the car directly.
Specifications
|
Output port |
Frequency |
Output power |
Jamming range |
|
4G LTE800 |
780-894MHz |
3 Watts |
5-25 meters |
|
CDMA800 |
869-894MHz |
3 Watts |
5-25 meters |
|
GSM900 |
925-960MHz |
3 Watts |
5-25 meters |
|
GSM1800 |
1805-1880MHz |
3 Watts |
5-25 meters |
|
WCDMA |
2110-2170MHz |
3 Watts |
5-25 meters |
|
WiFi 2.4G |
2400-2485MHz |
2 Watts |
5-50 meters |
|
4G LTE 2600 |
2620-2690MHz |
3 Watts |
5-25 meters |
|
GPS L1 |
1975MHz |
1 Watts |
5-50 meters |
|
Optional |
Frequency of each band can be customized |
||
|
Warranty |
One year from delivery date |
||
|
Power supply |
50 to 60Hz, 100 to 240V AC, With AC adapter |
||
|
Packing list |
Mainframe*1, Antenna*8, Power supply*1 |
||
|
Applications |
Meeting Room, Cars, Rest Room, Hospital, Theaters, Church, Office Room, Prison, etc. |
||
Customized Isolating Signal Bandwidth
|
CDMA |
851-894MHz |
|
GSM |
925-960MHz |
|
DCS |
1805-1880MHz |
|
PCS |
1930-1990MHz |
|
3G |
2110-2185MHz |
|
4G (LTE) |
725-785MHZ |
|
4G (Wimax) |
2300-2410MHZ |
|
Lojack |
167-175MHZ |
|
RF Radio |
315MHz |
|
RF Radio |
433MHz |
|
GPSL1/Glonass |
1575.42MHz |
|
VHF |
135-175MHz |
|
UHF |
435-475MHz |
|
GPSL2/Glonass |
1227.42MHz |
|
Wireless Camera 1.2G |
1100-1200MHz |
|
Wireless Camera 2.4G |
2400-2483MHz |
|
Wi-Fi/Bluetooth |
2.4G |
|
WI-FI, 5G |
5500-5900MHz |
Wecome to do OEM/ODM, we can do customized frequency based above frequencies.
Jamming monitoring system are availble for all our jammers for projects which require all the jammers be monitored and controlled together by computer from internet.
Accessories
1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
AC Power Charger (we will send correct standard power supply which according customer's shipping address)
Mounting Screws
Whip Omni-directional Antennas x 8
Whip antenna specification
|
Electrical Specifications |
|
|
Frequency Range |
The same as the jammer channel |
|
Impedance |
50 Ohm |
|
VSWR |
<1.5 |
|
Gain |
3dBi |
|
Polarization |
Vertical |
|
Radiation Direction |
Omni |
|
Max. Power Input-watts |
50 W |
|
Mechanical Specifications |
|
|
Length |
210mm |
|
Radiating Material |
Whip |
|
Connector |
SMA |
|
Radome colour |
Black |
Notice
Please connect all antennas before switch on the jammer. And don't take off the antenna while the jammer is working with power on.
