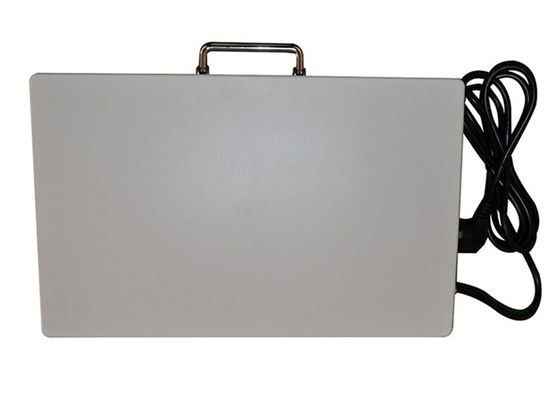

All In One Mobile Phone Jammer, 14 Channels Wireless Signal Jammer
All In One Mobile Phone Jammer, 14 Channels Wireless Signal Jammer is a high-tech signal jammer that has been developed by our company using advanced technology and rich experiences. The cell phone jammer can jam and block all cell phone signal such as GSM, CDMA, DCS, PCS, PHS, LTE, Wimax, 2G, 3G, 4G, 5G, 5.8G, WiFi, 2.4G, Bluetooth, GPS and any other target wireless signals within a radius of 2-50 meters.
Most wireless spy bugs can also be disabled.
|Output port||Frequency||Average out-putting power||Channel out-putting power|
1. The National Education Department customized this jammer for college entrance examinations for all frequencies jamming.
2. The Inner Directional Antennas 14 Bands Cell Phone Signal Jammer can effectively jam and block all kinds of wireless devices but not just cell phones.
3. The most extensive jamming Frequencies range could be 20MHZ-6500MHZ.
4. The highest effective power of the 14 Bands Inner Directional Antennas Cell Phone Jammer, single-channel output power of low frequency 100-800MHZ can be as high as 10W, high-frequency 800-2700MHZ single output power of 5-8W.
The 14 Bands Inner Directional Antennas Cell Phone Jammer 2G 3G 4G 5G Signal Jammer is a high-tech, new-type security product that has been successfully developed in response to the detailed requirements of various wireless signal plagiarism tools in the current examination room in response to the requirements of the National Education Ministry. The device effectively blocks all cell phone signals (CDMA, GSM, DCS, PHS, TDSCDMA, CDMA2000, WCDMA, LTE, 3G, 4G, 5G), walkie-talkies, wireless bone conduction headsets, 2.4G (WLAN, WIFI, Bluetooth), cameras, and built-in LED display digits in the examination room Transmission and reception tools (rubber files, watches, rulers, pens, glasses probes) and other wireless copy tool signals.
1. Effectively jam all mobile phones, walkie-talkies, radio, 2.4G (WLAN, WIFI, Bluetooth), and other wireless signals in the examination room cheating tools, without interference to other electronic devices outside the examination room.
2. Adopt a special mold case to configure a new type of ultra-large aluminum alloy heat sink and fan to form a highly efficient intelligent cooling system to ensure that the device will continue to work for a long time without hot, stable performance, safety, and reliability. (Appearance patent certificate has been obtained)
3. Obtained a certificate of inspection of the Institute of Environment and Health-related Product Safety of the Chinese Center for Disease Control and Prevention. Green environmental protection, electromagnetic field strength is much lower than the national standard, without any impact on the human body;
4. Obtained the test report of the Security and Electronic Product Quality Testing Center of the Ministry of Public Security, and selected foreign high-performance integrated circuits and patch components for high integration and reliable quality.
5. the antenna uses a built-in directional antenna, no external antenna, easy installation and management;
6. the product uses high-quality silent fan, noise is small when working, does not affect the student exam.
7. Effective jamming scope 100-300 square meters (distance between launching and receiving equipment> 200 meters).
Installation and usage instructions
1 installation steps and methods
1.1 Remove the 2G 3G 4G 5G Signal Jammer host from the box.
1.2 Hang the jamming Mobile Jammer on the wall or place it in the appropriate position. The optimal installation height is 1-1.8 meters.
1.3 Insert the AC input of the power supply into the mains socket, and then turn on the power switch. The work indicator light on the power supply is on.
1.4 For large and small space installation location point method, as shown below
Example 1: Indoor Space (less than 200 square meters)
Example 2: Indoor space (greater than 200 square meters, multiple units must be used)
Example 3: Outdoor large space (greater than 1000 square meters, with multiple cellular effects best)
2.1 The cell phone jammer is a built-in antenna and the antenna does not need to be installed. Power on the host and turn on the switch.
2.2 The effective coverage area of the 2G 3G 4G 5G Signal Jammer is a half circular area centered on the 2G 3G 4G 5G Signal Jammer. Therefore, when using it, make sure that the 2G 3G 4G 5G Signal Jammer is properly positioned so as not to produce a blind corner.
2.3 The Inner Directional Antennas 14 Bands Cell Phone Signal Jammer should be placed in a well ventilated place, try to avoid the obstruction of large objects, avoid strong heat source and strong electromagnetic source. To ensure the jamming effect and long-term stable work.
2.4 When jamming the Mobile Jammer, do not stack other items on it and disassemble the antenna so as not to affect the jamming effect and damage the cell phone jammer.
2.5 When the Mobile Jammer is not used, the power should be cut off in time to avoid affecting the normal operation of the mobile phone.
2.6 When using cell phone jammer outdoors, pay attention to waterproof.
2.7 When the area of the used site is larger than the effective jamming range, it is recommended to use multiple jamming devices for honeycomb installation to ensure the jamming effect.
2.8 Keep away from corrosive gases and liquids, and do dust and moisture protection so as not to accelerate the aging of the internal components of the equipment.
2.9 When placing outdoors or in the wild, care should be taken to install additional protective devices in the presence of destructive animals such as rats and ants.
2.10. The equipment must remain upright.
2.11 The power cord must be fully open so that the power supply is as far away from the equipment as possible.
2.12 Keep dry, do not invade any liquid, do not get near fire.
2.13 Please attach the product model mark to the area to be jamed.
Do not disassemble without authorization from the manufacturer.
3.1 This 2G 3G 4G 5G Signal Jammer is a maintenance-free device and does not require maintenance
3.2 When wiping the surface, do not use chemical solvents and avoid water in the cell phone jammer.
3.3 Screening When not in use, the Mobile Jammer should be stored in a dry and ventilated place to avoid prolonged exposure to salt spray and harmful gases.
