6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range

China Shenzhen  Times  Starlight  Technology  Co.,Ltd certification
China Shenzhen  Times  Starlight  Technology  Co.,Ltd certification
I like their patients and professinal answers for all my question. And this is third time we cooperate for our local prison jamming projects.

—— Mr CARLOS LIMA

a few of the outdoor jammers are not working after 3 years and thanks for the replacements and guide. Now the problem solved perfectly.

—— Mr sarfraz ahmad

I'm Online Chat Now

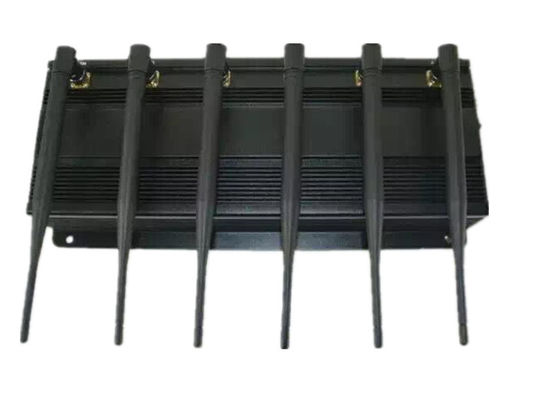

6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range

6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range
6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range 6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range

Large Image :  6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range

Product Details:
Place of Origin: China
Brand Name: TSL
Certification: ISO9001, SGS, FCC, ROSH
Model Number: TSL-B8-12V
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1 Working Day
Payment Terms: T/T Bank Transfer, , PayPal
Supply Ability: 3000pcs per month
Detailed Product Description
Product Name: Cell Phone Jamming Devices RF Output Power: 24watts
Antennas: 8 Whip Omni-directional Antenna Gross Weight: 2kgs
Color: Black Operating Temp: -10 To 50℃
Jamming Area: 5-20 Meters Power Of Each Band: 2-3 Watts
High Light:

cell phone blocking device

,

cell phone scrambler device

6 to 8 Antennas Cell Phone Jamming Devices With 12V Input For longer Jamming Range



Updated at the begining of 2017 to 12V input voltage. It can jam longer distance than traditional jammers with 5V input power supply. All 8 bands output signal frequencies can be customized. 24/7 working time. RF power stepless adjustment on and off control independently for each every jamming channel.



6 to 8 Antennas Cell Phone Jamming Device With 12V Input For longer Jamming Range 0



Description



1. The TSL-B8-12V is a cell phone jamming device with 8 omni-directional antennas and 12V input power suply. This jamming device is specialized in anti all kinds of wireless telecommunication based on different requirements.
2. The target jamming signal include but not limited to Wifi, CDMA, GSM, 3G & 4G LTE, GPS, UHF, VHF and Bluetooth.
3. The black metal case provides an excellent heat-dissipation for the jammer.
4. Besides, the 2 little fans inside can also help to blow the heat away and insure the long stable operation of 24*7.

5. Just like all our jamming devices, TSL-B8-12V is very simple to use. All you need to do is to attach the plug and antennas, then put on the power.
6. The jammer will block all target signals around automatically and there is nothing else for you.
7. This model can reach 4 to 16 channels for option, interference of all mobile phone signal, WIFI 2.4G signal, Wireless Camera & GPS L2, VHF, UHF, etc. Within the effective range for up to 50meters, Practical for some locations of special purpose such as, School, Church, University, hospitals, gas stations and so on.
8. Specially designed for easy and simple use, this device does not require complicated installation or any professional knowledge.

9. This signal jammer was developped in 2017 based on the new RF technology.

10. The cell phone jamming device can also be used in a car be power by the car charger.

Specifications



Output port

Frequency

Output power

Jamming range

4G LTE800

780-894MHz

3 Watts

5-25 meters

CDMA800

869-894MHz

3 Watts

5-25 meters

GSM900

925-960MHz

3 Watts

5-25 meters

GSM1800

1805-1880MHz

3 Watts

5-25 meters

WCDMA

2110-2170MHz

3 Watts

5-25 meters

WiFi 2.4G

2400-2485MHz

2 Watts

5-50 meters

4G LTE 2600

2620-2690MHz

3 Watts

5-25 meters

GPS L1

1975MHz

1 Watts

5-50 meters

Optional

Frequency of each band can be customized
Jamming monitoring system for option
UPS battery, car adapter for option

Warranty

 One year from delivery date

Power supply

50 to 60Hz, 100 to 240V AC, With AC adapter

Packing list

Mainframe*1, Antenna*8, Power supply*1

Applications

Class room, Meeting Room, Cars, Rest Room, Hospital, Theaters, Church, Office Room, Prison, etc.


Customized Isolating Signal Bandwidth

CDMA

851-894MHz

GSM

925-960MHz

DCS

1805-1880MHz

PCS

1930-1990MHz

3G

2110-2185MHz

4G (LTE)

725-785MHZ

4G (Wimax)

2300-2410MHZ

Lojack

167-175MHZ

RF Radio

315MHz

RF Radio

433MHz

GPSL1/Glonass

1575.42MHz

VHF

135-175MHz

UHF

435-475MHz

GPSL2/Glonass

1227.42MHz

Wireless Camera 1.2G

1100-1200MHz

Wireless Camera 2.4G

2400-2483MHz

Wi-Fi/Bluetooth

2.4G

WI-FI, 5G

5500-5900MHz


Wecome to do OEM/ODM, we can do customized frequencies from 20MHz to 6.5G.



All our cell phone jamming device can support Centralized Management by our monitoring system. Welcome to contact us if you need to do any jammer projects such as prison jamming projects, etc.



APPLICATIONS

1. Movie theaters, hospitals, Religious Places, churches
2. university, schools, classrooms, libraries
3. police forces and military, Government,
4. Inside jails. Prisons
5. Homeland Security
6. Correctional Centers
7. Petrochemical Industry
8. Sports Venues and Theaters
9. VIP Convoy Protection
10. Bomb Prevention/Disposal
11. Schools and Universities
12. Power Generating Plants


Accessories
    1 x English User Manual (We will send a scan file by email if you need the manual since the paper manual may cause some custom issue)
    AC Power Charger (The correct standard adapter will be send by the shipping  address)
    Mounting Screws
    Whip Omni-directional Antennas x 8

Whip antenna specification

 Electrical Specifications

Frequency Range

The same as the jammer channel

Impedance

50 Ohm

VSWR

<1.5

Gain

3dBi

Polarization

Vertical

Radiation Direction

Omni

Max. Power Input-watts

50 W

Mechanical Specifications

Length

410mm

Radiating Material

Whip

Connector

SMA

Radome colour

Black



Jammer Monitoring Software Platform Introduction

1. The Jammer Monitoring Software Platform allows users to monitor and control all Jammers through Internet, and all real-time alarm information feedback to the users immediately. So that users can stay at office to have all information of jammers working status, and adjust the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.



2. The platform enables real-time display of all Jammers' output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.



3. This platform also allows you to change the login page photo and upload your own logo by yourself.
