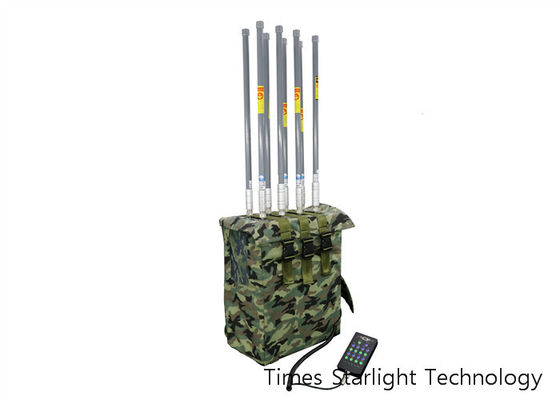

Portable Wideband Manpack Cellphone Jammer For Police , Am Radio Jammer

Portable Wideband Manpack Cellphone Jammer For Police , Am Radio Jammer

Description

1. TSL-BP6 specially designed for military RCIED disposal, Briefcase Jammer is a wide-band portable jamming system, designed for the protection of VIP's and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Briefcase Jammers are also deployed to guard forces in the field, Dignitaries and VIP's, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. Briefcase Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.
2. High Power Frequency Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system; Highly portable and light weight. It plays an important role to use the heavily loaded vehicle in some extreme hard situation.
The system use Broadband Omni-Directional antennas for 360 degree protection.
The jammer can operate its specially designed 8dBi high-gain antenna.

Features
1. High-power Manpack multi-band RF signal jammer.
2. Modular construction for easy maintenance, repair and upgrade.
3. Jam up to SIX different jamming modules.
4. Max 300 watt total RF output power.
5. Systematic Smart Cooling System.
6. The general design of the system meets military requirements.
7. Frequency bands and output power selectable.
8. Integrated main equipment, battery, and antennas increases mobility of the device;
9. Different frequency bands can be controlled independently by different switches;
10. Local or wire control operation mode can be selected based on actual environment;
11. AC or DC power supply can be selected;
12. Power Amplifiers protection design ensures the working reliabity of the device.
13. Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc.

Applications
1. Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;
2. Protect explosives handling experts;
3. Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;
4. Risk mitigation and explosives removal in specified spots;
5. Police used for VVIP convoy, anti drug, riot control, etc.
6. Military used for border control, etc.

Specification
Working frequency: 20MHz to 6000MHz ranges selectable;
Working Bands: 4 to 6 bands selectable
RF Output Ports: 4 to 6 RF Output Ports selectable;
Channel RF Output Power: up to 120W;
RF output power: up to 500W;
Internal Modulation: Direct Digital Synthesis (DDS) or Analog;
Effective jamming range: 50-500m depending on the environment signal strength;
Jamming target: toy remote control, car remote control, pager, walkie talkie, CDMA, GSM, DCS, PHS, 3G, 4G, WIFI, etc;
Remote Control: Wire Control Panel Available (optional)
Power supply: 220VAC, 24VDC battery (optional);
Continuous working hours: Long time (AC 220V); 1 hour by battery, rechargeable;
Antennas type: high gain omni antennas
Main equipment Dimension: 630*530*330mm;
Main equipment Weight: 50kgs;
Operating Temp: -20ºC - +50ºC
Humidity: 5% - 95%

Customized Isolating Signal Bandwidth


Wecome to do OEM/ODM, we can do customized frequency based above frequencies.


Antenna Specification
