Product Details
Place of Origin: China
Brand Name: TSL
Certification: ISO9001, SGS, FCC, ROSH
Model Number: TSL-NB8
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1 Working Day
Payment Terms: T/T Bank Transfer, , PayPal
Supply Ability: 3000pcs per month
Product Name: |
Phone Jammer |
RF Output Power: |
16 Watts |
Antenna: |
High Gain Whip Omni-directional Antenna |
Gross Weight: |
2.5kg |
Color: |
Black |
Operating Temp: |
-10 To 50℃ |
Jamming Area: |
5-25m Depending On The Environment Signal Strength |
Power Of Each Band: |
2 To 3 Watts |
Product Name: |
Phone Jammer |
RF Output Power: |
16 Watts |
Antenna: |
High Gain Whip Omni-directional Antenna |
Gross Weight: |
2.5kg |
Color: |
Black |
Operating Temp: |
-10 To 50℃ |
Jamming Area: |
5-25m Depending On The Environment Signal Strength |
Power Of Each Band: |
2 To 3 Watts |

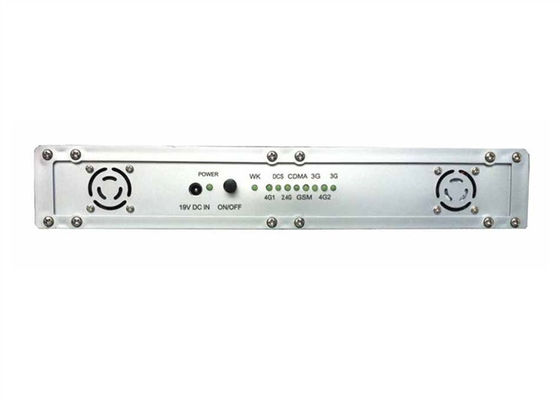

Mobile Internet Wifi Signal Jammer 900MHz , Cell Phone Wifi Signal Scrambler
Description
1. The TSL-BB8H is a wifi jammer with 8 high-gain omni-directional antennas. This jamming device is specialized in anti all kinds of remote telecommunication cheating in examnations.
2. The target jamming signal includes but not limited to Wifi, CDMA, GSM, 3G & 4G LTE, GPS, UHF, VHF and Bluetooth. Any wireless signals which can be used for cheating are available for jamming.
3. The black metal case provides an excellent heat-dissipation effect for the jammer.
4. Besides, the 2 little fans inside can also help to blow the heat away and insure the long & stable operation of 24*7.
5. Just like all our jamming devices, TSL-BB8H is very simple to use. All you need to do is to attach the plug and antennas, then put on the power.
6. The jammer will block all target signals around automatically and there is nothing else for you.
7. This model can reach 4 to 16 channels for option, interference of all mobile phone signal, WIFI 2.4G signal, Wireless Camera & GPS L2, VHF, UHF, etc. Within the effective range for up to 50meters, Practical for some locations of special purpose such as, hospitals, gas stations and so on.
8. Specially designed for easy and simple use, this device does not require complicated installation or any professional knowledge.
9. This jammer was developped in 2016 based on the new RF technology.
10. The cell phone blocker can also be used in a car be power by the car charger.
Specifications
|
Output port |
Frequency |
Output power |
Jamming range |
|
4G LTE800 |
780-894MHz |
3 Watts |
5-25 meters |
|
CDMA800 |
869-894MHz |
3 Watts |
5-25 meters |
|
GSM900 |
925-960MHz |
3 Watts |
5-25 meters |
|
GSM1800 |
1805-1880MHz |
3 Watts |
5-25 meters |
|
WCDMA |
2110-2170MHz |
3 Watts |
5-25 meters |
|
WiFi 2.4G |
2400-2485MHz |
2 Watts |
5-50 meters |
|
4G LTE 2600 |
2620-2690MHz |
3 Watts |
5-25 meters |
|
GPS L1 |
1975MHz |
1 Watts |
5-50 meters |
|
Optional |
Frequency of each band can be customized |
||
|
Warranty |
One year from delivery date |
||
|
Power supply |
50 to 60Hz, 100 to 240V AC, With AC adapter |
||
|
Packing list |
Mainframe*1, Antenna*8, Power supply*1 |
||
|
Applications |
Meeting Room, Cars, Rest Room, Hospital, Theaters, Church, Office Room, Prison, etc. |
||
Customized Isolating Signal Bandwidth
|
CDMA |
851-894MHz |
|
GSM |
925-960MHz |
|
DCS |
1805-1880MHz |
|
PCS |
1930-1990MHz |
|
3G |
2110-2185MHz |
|
4G (LTE) |
725-785MHZ |
|
4G (Wimax) |
2300-2410MHZ |
|
Lojack |
167-175MHZ |
|
RF Radio |
315MHz |
|
RF Radio |
433MHz |
|
GPSL1/Glonass |
1575.42MHz |
|
VHF |
135-175MHz |
|
UHF |
435-475MHz |
|
GPSL2/Glonass |
1227.42MHz |
|
Wireless Camera 1.2G |
1100-1200MHz |
|
Wireless Camera 2.4G |
2400-2483MHz |
|
Wi-Fi/Bluetooth |
2.4G |
|
WI-FI, 5G |
5500-5900MHz |
Wecome to do OEM/ODM, we can do customized frequency based above frequencies.
All our signal jammers can support Centralized Management by our monitoring system. Welcome to contact us if you need to do any jammer projects such as prison jamming projects, etc.
Application Area
1. It can be applied at classroom, prisons, meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. It can also be used to jam any wireless signals if don't want it. All wireless signals from 20 MHz to 6.5G can be customized for jamming.
Accessories
1 x English User Manual (We will send a scan file by email if you need the manual since the paper manual may cause some custom issue)
AC Power Charger (The correct standard adapter will be send by the shipping address)
Mounting Screws
Whip Omni-directional Antennas x 8
Whip antenna specification
|
Electrical Specifications |
|
|
Frequency Range |
The same as the jammer channel |
|
Impedance |
50 Ohm |
|
VSWR |
<1.5 |
|
Gain |
3dBi |
|
Polarization |
Vertical |
|
Radiation Direction |
Omni |
|
Max. Power Input-watts |
50 W |
|
Mechanical Specifications |
|
|
Length |
210mm |
|
Radiating Material |
Whip |
|
Connector |
SMA |
|
Radome colour |
Black |
