Product Details
Place of Origin: China
Brand Name: TSL
Certification: ISO9001, SGS, FCC, ROSH
Model Number: TSL-ODPA
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1 Working Day
Payment Terms: T/T Bank Transfer, , PayPal
Supply Ability: 10000pcs per month
Product Name: |
Cell Blocker Antenna |
Application: |
Outdoor & Indoor |
Covering Area: |
Directional |
Working Time: |
Long Time |
Operating Temp: |
-10 To 50℃ |
Storage Temp: |
-40 To +60ºC |
Operating Humidity: |
5% - 95% |
Material: |
ABS |
Product Name: |
Cell Blocker Antenna |
Application: |
Outdoor & Indoor |
Covering Area: |
Directional |
Working Time: |
Long Time |
Operating Temp: |
-10 To 50℃ |
Storage Temp: |
-40 To +60ºC |
Operating Humidity: |
5% - 95% |
Material: |
ABS |

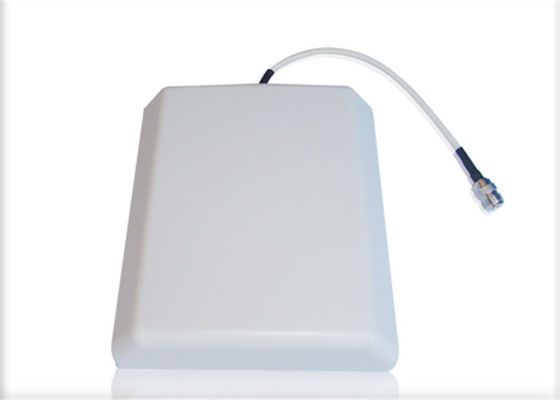

High Gain Directional Cell Blocker Antenna, 7 DBi Signal Blocker Antenna
This Blocker Antenna is suitable for both indoor jamming and outdoor jamming. In fact directional jamming antennas can alsways provice better jamming distance than any other omni-directional antennas. Directional Antennas always have higher gain than omnid-rectional antennas. With higher gain and smaller angle it will aways double the jamming ditsnace easily. This Blocker Antenna is Available for all kinds if cell phone signal blockers.
|
Power Indicator |
|
|
Operating frequency |
20Mhz to 6.5G for option |
|
VSWR |
< 1.4 |
|
Gain |
9dBi |
|
Level 3dB beam width |
90° |
|
Vertical 3dB beam width |
50° |
|
Vertical |
polarization |
|
Input impedance |
50Ω |
|
Power Capacity |
100 W |
|
Connector |
N-F or SMA |
|
Third-order intermodulation |
<-150dBc |
|
Lightning protection |
Dc grounding |
|
Mechanical properties |
|
|
Size |
210×180×45mm |
|
Weight |
0.8kg |
|
materials |
ABS |
|
Installation method |
Hanging wall |
Description
1. We can make all kinds of antennas from 20Mhz to 6.5G. Welcome for customization.
2. We specializes in developing and manufacturing professional mobile radio antenna,two way radio antenna,fiberglass antenna and so on, we can provide VHF,UHF,Dual band (VHF/UHF).
3. We will offer you quotation based on your specific request and quantities,so please kindly let us know the specific frequencies, antenna gain,connector and other requirements that you prefer then we are able to quote accordingly.
Shipment
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, and large quantities depend on Customer request.
Cooperation
1. Please contact us at first time for bulk order, larger discount waits for you
2. Please be responsible for custom tax if your local custom charge some custom tax
3. OEM / ODM Service is offered, we can design packing box and logo mark as your requirement
4. Sample leading time: If with our logo, within 5 days
5. MOQ: 1pcs for sample, 100pcs for mass production, 500pcs for OEM
6. Payment term: Bank Transfer, and Paypal
7. Warranty Information: 12 months for body radio, 6 months for accessories
