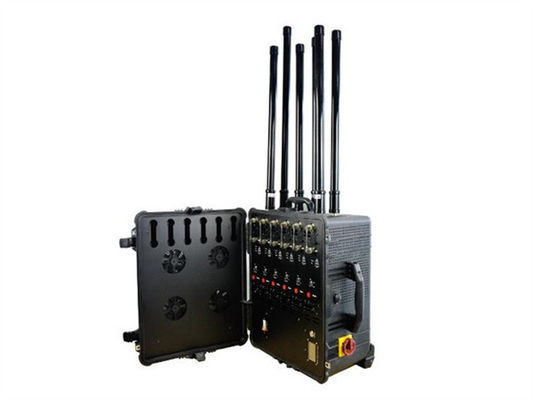

Inner Battery High Power Bomb Jammer

Inner Battery High Power Bomb Jammer
Inner Battery High Power Bomb Jammer Inner Battery High Power Bomb Jammer Inner Battery High Power Bomb Jammer Inner Battery High Power Bomb Jammer Inner Battery High Power Bomb Jammer

Large Image :  Inner Battery High Power Bomb Jammer

Product Details:
Place of Origin: China
Brand Name: TSL
Certification: ISO9001, SGS, FCC, ROSH
Model Number: TSL-MP12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1 Working Day
Payment Terms: T/T Bank Transfer, , PayPal
Supply Ability: 1000pcs per month
Detailed Product Description
Product Type: High Power Manpack Bomb Jammer Antennas Quantity: 4 To 12
Net Weight: 40 Kgs RF Output Power: 200 To 360 Watts For Optional
Backup Battery: Optional Working Time By Battery: 2 Hours
Operating Temp: -15 To 55℃ Power Adjustment: Each Band Independently
Power Of Each Band: 30 To 50watts Jamming Range: 100 To 200 Meters
High Light:

military gps jammer


convoy jammer

Inner Battery High Power Bomb Jammer Manpack Type Max to 12 Channels



1. 8 to 12 High Gain Fibre Glass Epoxy Antennas.
2. Modular construction for easy maintenance, repair and upgrade.
3. Jamming up to 12 different wireless signals
4. Max 360 watts total RF output power, 30 watts each channel, 12 channels.
5. Systematic Smart Cooling System.
6. The high quality of the system meets military requirements.
7. Frequency bands and output power can be customized by special requirements.
8. Integrated main equipment, battery, and antennas increases mobility of the device.
9. Different frequency bands can be controlled independently by different switches.
10. Local or wire control operation mode can be selected based on actual environment.
11. AC or DC power supply can be selected.
12. Power Amplifiers protection design ensures the working reliabity of the device.
13. Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc.


1. Prevent remote controlled improvised explosive devices RCIED from being activated, stop terrorist attacks.
2. Protect explosives handling experts.
3. Protect important places such as bus / train stations, plazas, schools, mass gatherings, stadiums, etc.
4. Risk mitigation and explosives removal in specified spots.
5. Police used for VVIP convoy, anti drug, riot control, etc.c
6. Military used for border control, etc.


1. 8 to 12 Total Working Channels
2. Total Working Output power up to 360W
3. Each band Output power up to 50W
4. Customized Internal High Gain Directional Antennas fully covered 12 bands
5. Internal Battery can support about 2 hours
6. Jamming longer range, about 50 to 200 meters, depend on local signals strength.
7. Best quality Pelican case, waterproof, dust proof, damage proof.
8. Smart Cooling Design to guarantee The Jammer can work for long time
9. Friendly Accessories box to pack all accessories in one case.
10. One Button to Turn On / Off
11. Smart Operation Panel to adjust the jammer


Model No. Jamming Frequenices Each band output Power
TSL-MP8 20-100MHZ 30W
100-300MHZ 30W
300-500MHZ 30W
800MHZ 30W
900MHZ 30W
1800MHZ 30W
1900MHZ 30W
3G 2100MHZ 30W
4G 2300MHZ 30W
2.4G 2400MHZ 30W
4G LTE 2600MHZ 30W
4G Wimax 700MHZ 30W
GPS L2 1200-1300MHZ 30W
GPS L1 1500-1600MHZ 30W
Max Working Bands: 8bands for option
Max Power: 240w



1. TSL-MP12 is specially designed for RCIED remote control bomb jamming.
Manpack Portable Bomb Jammer is a wide-band portable jamming system, designed for the protection of VIP's from radio controlled improvised explosion by disabling the radio exploder control signal in dangerous areas. Manpack Portable Bomb Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb (RCIED) activation by various RF signals.


2. TSL-MP12 can also be used to cut off any unnecessary and unwanted wireless communications while some special actions. High Power Frequency Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system. The system use Broadband Omni-Directional antennas for 360 degree protection.


Customized Frequencies for option


CDMA 851-894MHz
GSM 925-960MHz
DCS 1805-1880MHz
PCS 1930-1990MHz
3G 2110-2185MHz
4G (LTE) 725-785MHZ
4G (Wimax) 2300-2410MHZ
Lojack 167-175MHZ
RF Radio 315MHz
RF Radio 433MHz
GPSL1/Glonass 1575.42MHz
VHF 135-175MHz
UHF 435-475MHz
GPSL2/Glonass 1227.42MHz
Wireless Camera 1.2G 1100-1200MHz
Wireless Camera 2.4G 2400-2483MHz
Wi-Fi/Bluetooth 2.4G
WI-FI, 5G 5500-5900MHz

Wecome to do OEM/ODM, we can do customized frequency based above frequencies.


Antenna Specification


Input impedance 50Ω
Standing wave ≤1.8
gain 8dBi
power capacity 150W
Direction of polarization Vertical polarization
intermediation <-107dBm
Port type 7/16 or N-K
Protection lightning Direct grounding
Hurricane lamp 60(m/s)
shank diameter φ40(mm)
