Shenzhen  Times  Starlight  Technology  Co.,Ltd
Home ProductsDrone Signal Jammer

Outdoor Manpack Drone Signal Jammer 6 Bands / Professional Drone Frequency Jammer

China Shenzhen  Times  Starlight  Technology  Co.,Ltd certification
China Shenzhen  Times  Starlight  Technology  Co.,Ltd certification
I like their patients and professinal answers for all my question. And this is third time we cooperate for our local prison jamming projects.

—— Mr CARLOS LIMA

a few of the outdoor jammers are not working after 3 years and thanks for the replacements and guide. Now the problem solved perfectly.

—— Mr sarfraz ahmad

I'm Online Chat Now

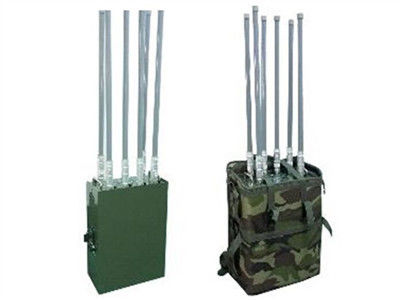

Outdoor Manpack Drone Signal Jammer 6 Bands / Professional Drone Frequency Jammer

Outdoor Manpack Drone Signal Jammer 6 Bands / Professional Drone Frequency Jammer
Outdoor Manpack Drone Signal Jammer 6 Bands / Professional Drone Frequency Jammer

Large Image :  Outdoor Manpack Drone Signal Jammer 6 Bands / Professional Drone Frequency Jammer

Product Details:
Place of Origin: China
Brand Name: TSL
Certification: ISO9001, SGS, FCC, ROSH
Model Number: TSL-MPDJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1 Working Day
Payment Terms: T/T Bank Transfer, , PayPal
Supply Ability: 1000pcs per month
Detailed Product Description
Product Name: Manpack Anti-Drone Signal Jammer Jamming Frequencies: GPSL1, 2.4G, 5.8G Or Customized
Net Weight: 22 Kgs RF Output Power: 75 Watts
Gross Weight: 22 Kgs Jamming Range: 1000m
Operating Temp: -10 To 50℃ Dimension: 400 X 290 X 135 Mm
Power Of Each Band: 10 To 20 Watts Operating Humidity: 5% - 95%
High Light:

drone frequency blocker

,

drone radio jammer

Manpack Anti-Drone UAV High Power Jammer 6 Bands Build-in Battery Dji UAV Signal Jammers




Features



  • Middle RF power, Cover 100% Drones UAVs ,Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
  • Directional Jamming range: 50~500 Meters
  • 6 Bands in One Directional Antenna
  • Built-in Battery +24V / 20AH LiFePO4 can work 1 Hour



Advantages



  • 10-25W each Band, 6 bands/antennas
  • Built-in Battery,Operating Time more than 60 Minutes (more option about battery working time)
  • Battery Power and charger stative display via LED screen .
  • Stand-alone modular design and individual power control.
  • Adjustable Output Power each Band/Channel
  • VSWR over protection for each modular.
  • Designed to cut off down-link only, therefore it doesn’t have Interference to base station and repeater.

Outdoor Manpack Drone Signal Jammer 6 Bands / Professional Drone Frequency Jammer 0
Package contents


1pcs Manpack Jammer

1pcs Manpack bag
1pc AC 110 or 220V DC 12V or 27V power Charger
6pcs Antennas Omni 500mm long



OEM Customized Service


All 6 Frequency modules we can mix very flexible, Options: Remote/Alarm Control 315MHz, 433MHz, 920-965MHz, GPS L1 L2 L3 L4 L5, LoJack 173MHz, 4G 700-800MHz (USA), UHF, VHF, SAT Satellite Phones 1520-1670MHz etc. Any combinations and customizations are possible, just send us your inquiry and we will give you our recommendation.

APPLICATIONS


Factory, Prison, Government, Airport, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection.



Key technical specifications
Channel Output port Frequency range Average out-putting power
1 GPS L1 1570-1580MHz 40dbm / 10W
2 GPS L2+L5 1170-1260MHz 40dbm / 10W
3 RC433 2110-2170MHz 43dbm / 20W
4 RC868 OR 912 868-920MHz 43dbm / 20W
5 RC2.4G 2400-2500MHz 40dbm / 10W
6 RC5.8G 5725-5850MHz 39dbm / 8W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)
Dimension: (length,width, height ) 400 x 290 x 135 mm(Not include antenna)
Package Size: 550 x450 x 300mm
N.W:16kg G.W:16Kg + 3kg antennas/etc.=22kg
Working temperature: -30~60℃
Total power:75W
Shielding radius: (20--500) meters At -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
